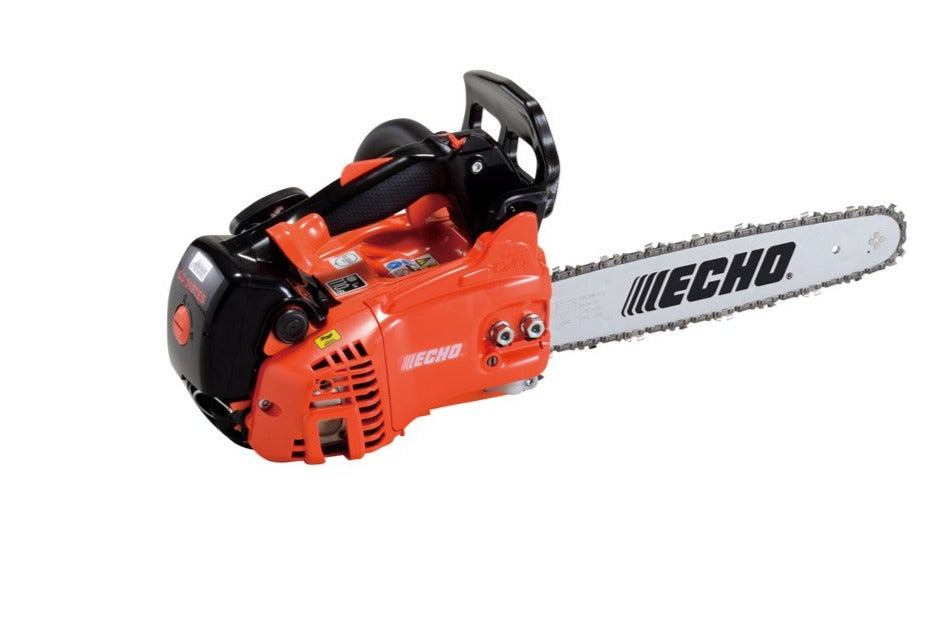

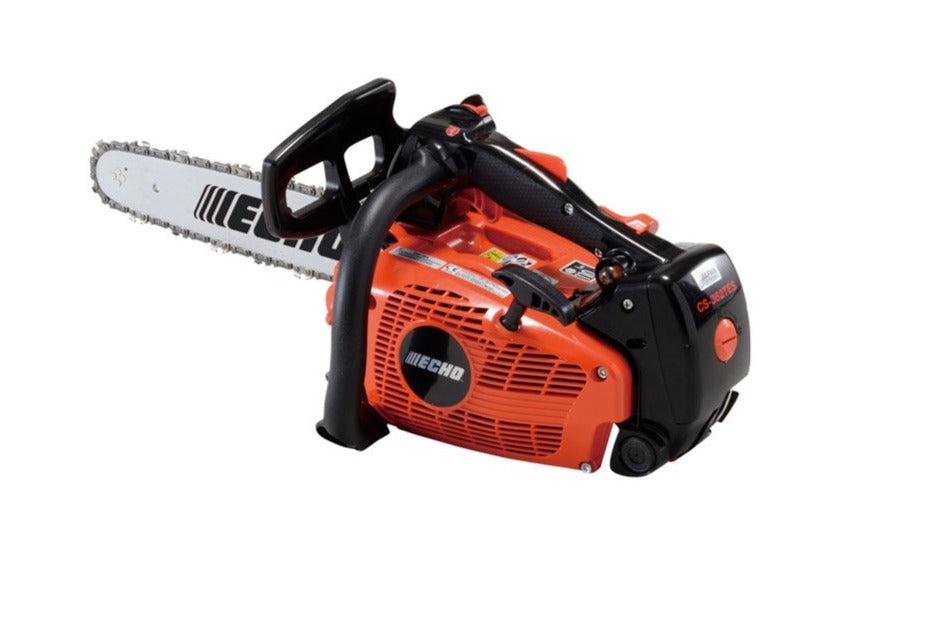

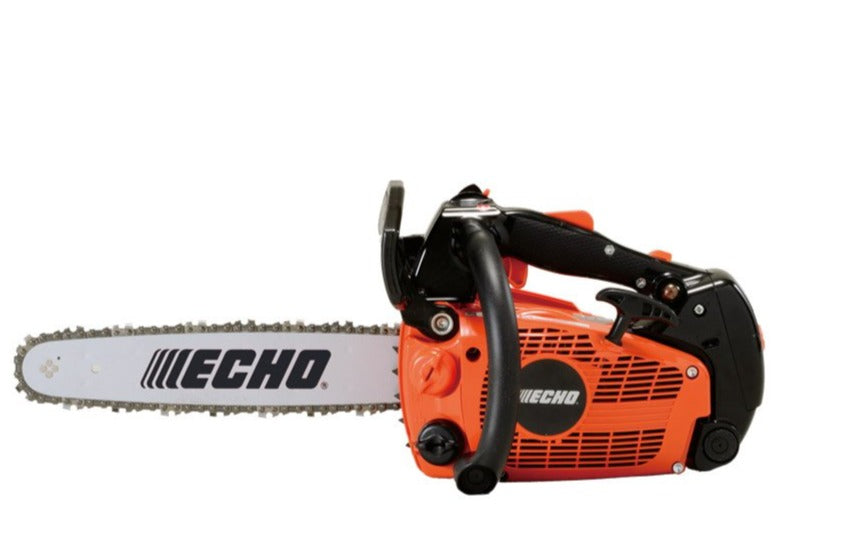

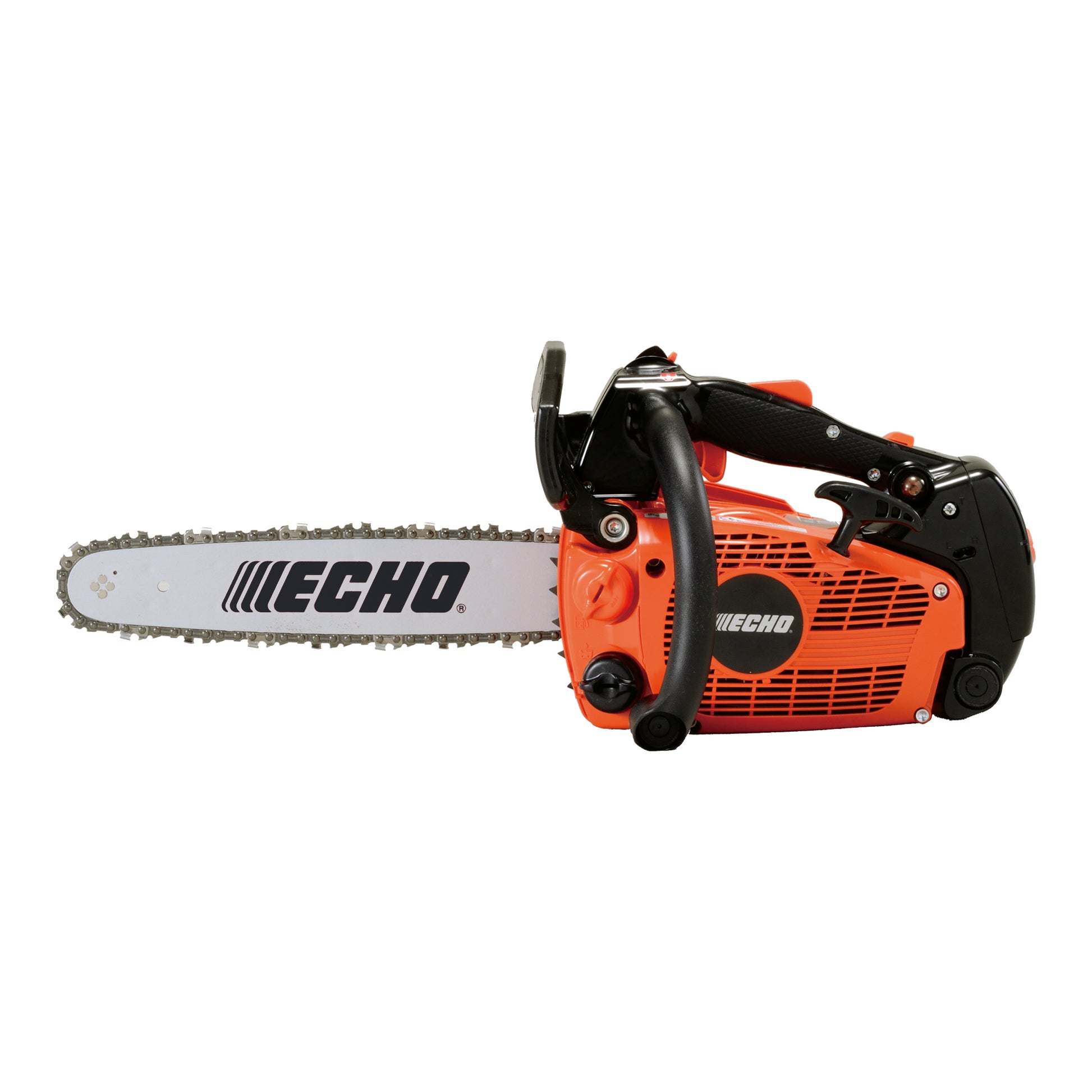

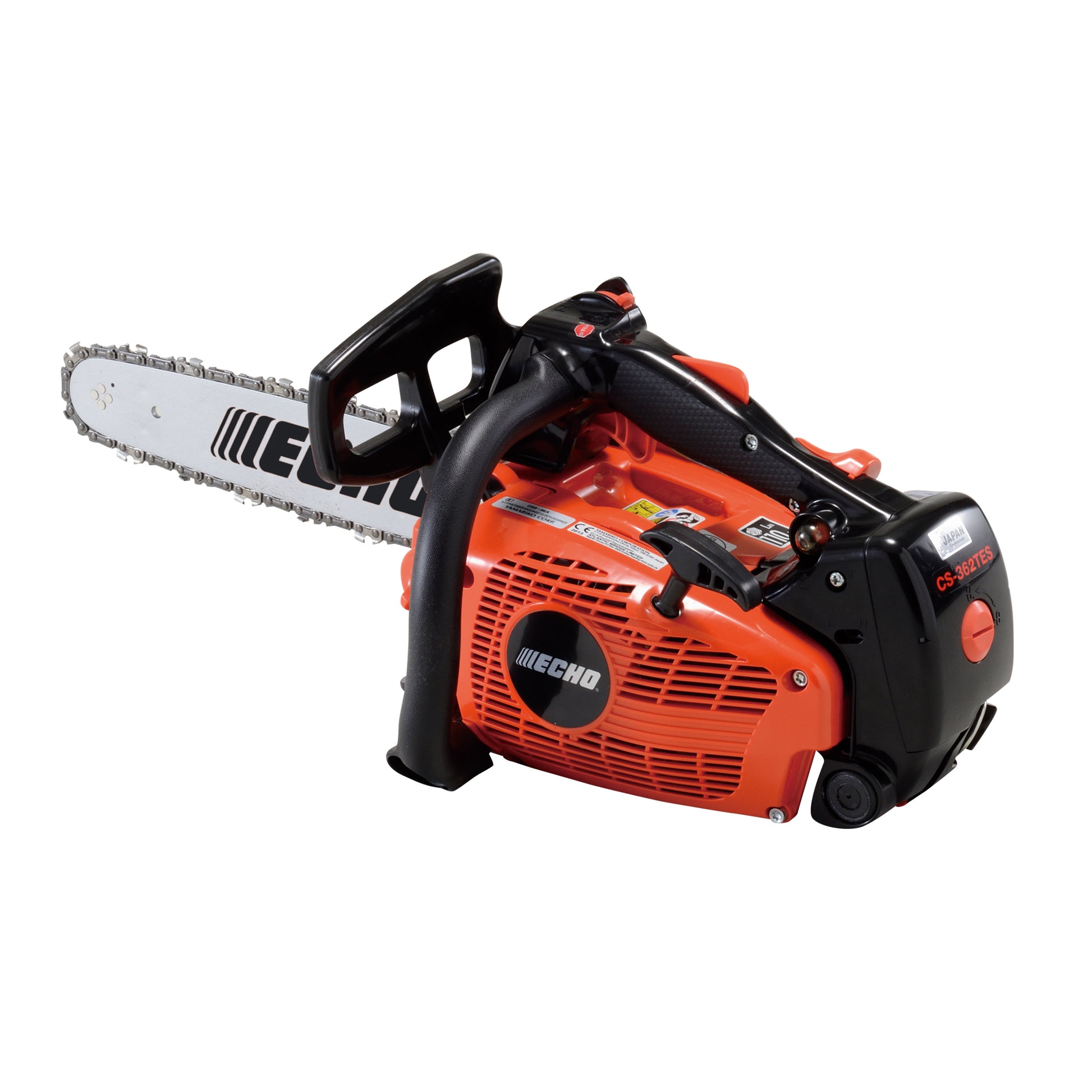

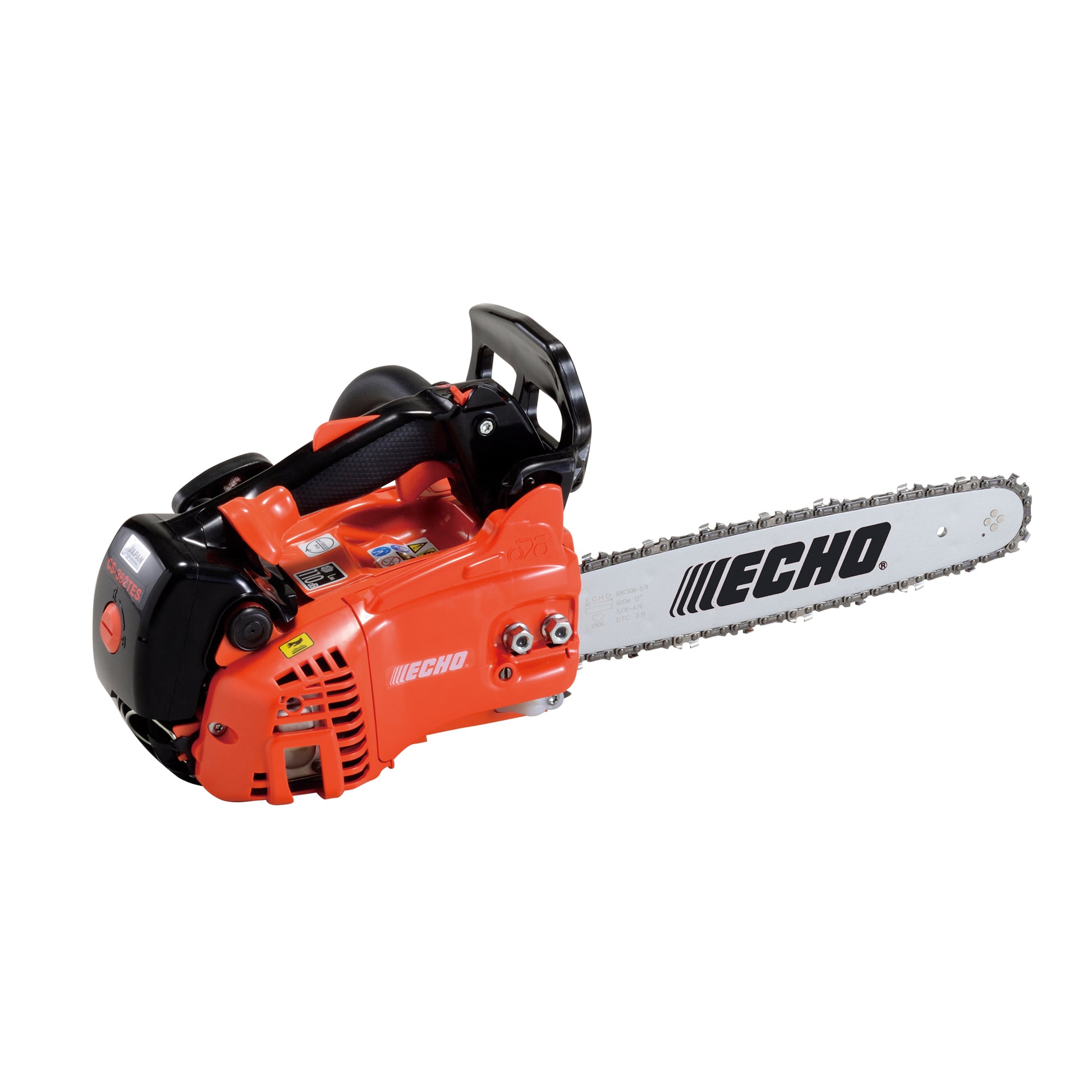

CS-362TES top handle chainsaw is a lightweight arborist saw designed for use by professional operators. This petrol chainsaw has a 35.8cc engine with an output of 1.50kw. It features Easy Start effortless starting, is also Stage 2 emissions compliant and its top handle design makes it the ideal climbing saw.
The tapered handle is set at 18° making this top handle chainsaw comfortable to use and well-balanced. Adjustable to two sizes, the palm rest ensures greater operator comfort and a reduction in fatigue.
The professional-grade cutter bar is single spiked. The dual post chain brake increases durability. Side access tensioning makes chain adjustments easily accessible. A premium grade ECHO engine means reduced wear and increased durability. The G-Force engine air pre-cleaner reduces air filter maintenance. A strong and durable belt hook easily attaches to harness rings.
Specification
| Engine displacement (cm³) | 35.8 |
|---|---|
| Output (kw) | 1.50 |
| Output (ps) | 2.04 |
| Dry Weight (kg) (undefined) | 3.6 |
| Fuel Tank Capacity (ml) | 330 |
| Chain Oil Tank Capacity (ml) | 243 |
| Fuel Consumption At Maximum Engine Power (L/h) | 0.88 |
| Priming Pump | Yes |
| Ignition System | CDI |
| Start Assist System | ES-Start |
| Chain Brake | Inertia |
| Choke w/ Automatic Fast Idle Release | Yes |
| Chain Tensioner | Side |
| Saw Chain Pitch (inch) | 3/8 (1/4) |
| Guide Bar Gauge (inch) | 0.50 |
| Applicable Bar Length (cm/inch) | 30/ 12 |
| Sound pressure level (dB(A)) | 99.9 |
| Sound power level (dB(A)) | 110.2 |
| CO² (g/kW・h) | 1016 |
| Vibration Front handle/Rear handle (m/s²) | 3.8 / 4.2 |
Features
Power to Weight
Super light-weight design with exceptional power.
Easy Start Engine
ECHO’s patented system for effortless starting.
Light Weight
Engineered to weigh less whilst retaining robust durability.
