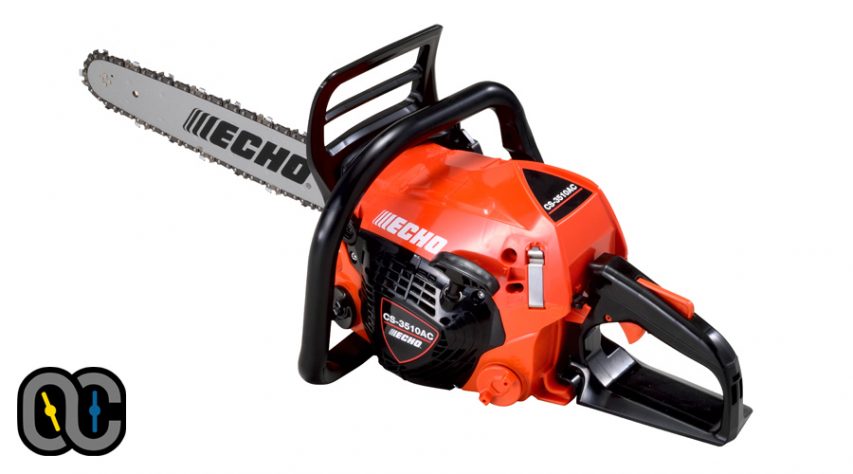

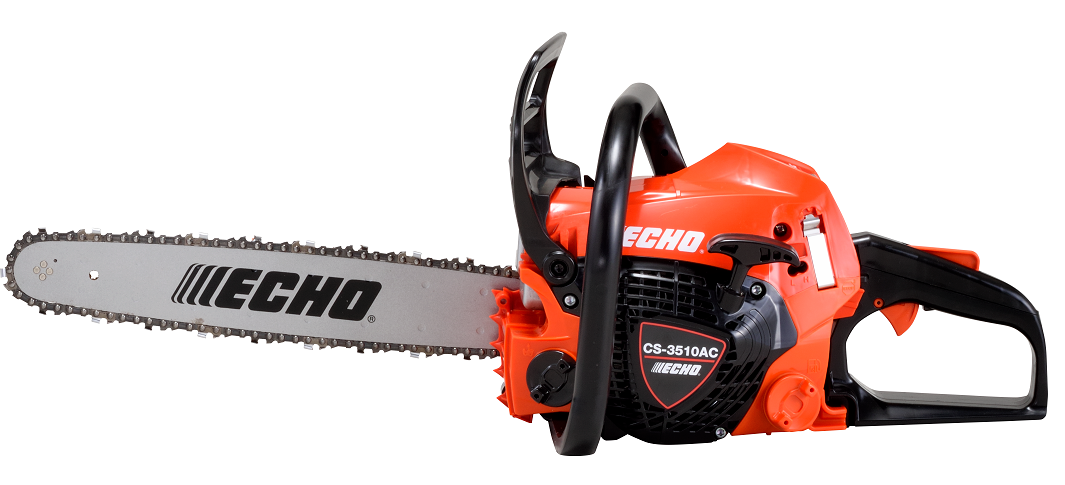

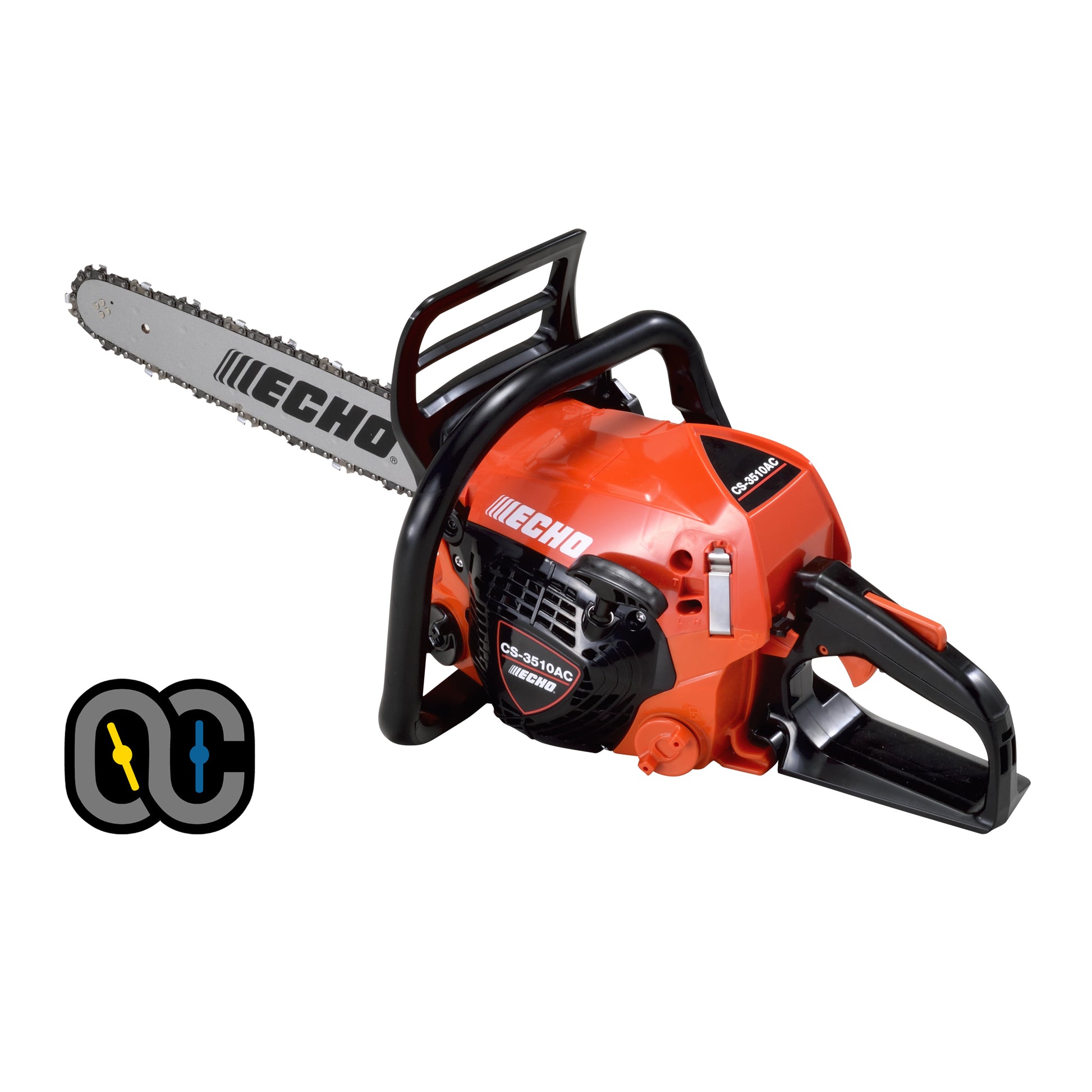

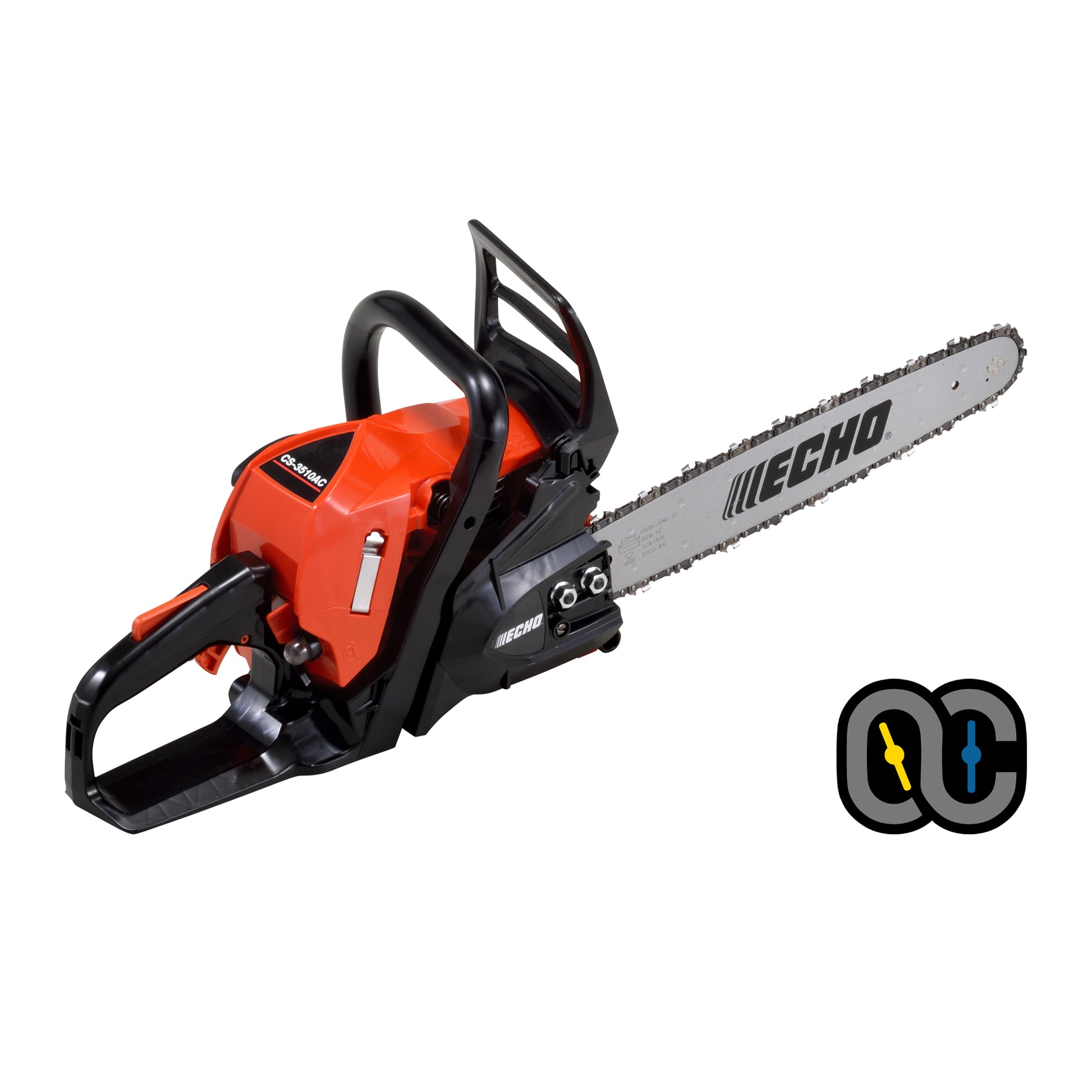

The CS-3510AC is a lightweight, all-around rear handle chainsaw with an “Auto Choke” feature. This enables a quicker starting procedure that prevents engine flooding and is safer for the operator. The solenoid valve in the carburettor controls the amount of fuel depending on the engine temperature.
It features an improved, commercial-grade 34.4cc engine and best in class power-to-weight ratio delivering a 1.5kW power output.
Its Stage 2 compliant low emission engine means reduced exhaust emissions. Useful features include a side-access chain tensioner that allows easy chain adjustment and a precision anti-icing system that prevents the carburettor from freezing in colder months.
A 35cm (14?) 3/8 Tsumara chainsaw bar and Oregon chain for improved cutting efficiency, are fitted as standard, making this an ideal saw for pruning and cutting firewood.
Specification
| Engine displacement (cm³) | 34.4 |
|---|---|
| Output (kw) | 1.5 |
| Output (ps) | 2.1 |
| Dry Weight | 3.8 |
| Fuel tank capacity (l) | 0.28 |
| Chain Oil Tank Capacity (ml) | 230 |
| Fuel Consumption At Maximum Engine Power (L/h) | 0.85 |
| Start Assist System | ES-Start |
| Chain Brake | Inertia |
| Saw Chain Pitch (inch) | 3/8 |
| Guide Bar Gauge (inch) | 0.043 / 0.050 |
| Applicable Bar Length (cm/inch) | 35, / 14 |
| Sound pressure level (dB(A)) | 101.5 |
| Sound power level (dB(A)) | 110.9 |
| CO² (g/kW・h) | 854 |
Features
Easy start engine
ECHO’s patented system for effortless starting.
Ease of use
Power on and get to work. Intuitive controls and features make your job a breeze.
Light weight
Engineered to weigh less whilst retaining robust durability.
